Football Turf Infill Standards for Different Football Pitch Types

Football Turf Infill Standards for 5-a-Side, 7-a-Side, and 11-a-Side Football Pitches

Football turf systems for five-a-side, seven-a-side, and eleven-a-side football pitches are required to meet defined technical and infill standards to ensure player safety, durability, and competition compliance. In accordance with the Chinese Football Association Venue Facility Guidelines and the national standard GB/T 20033.3-2021, football turf pitch construction must follow regulated parameters for fiber performance, infill materials, and installation quality.

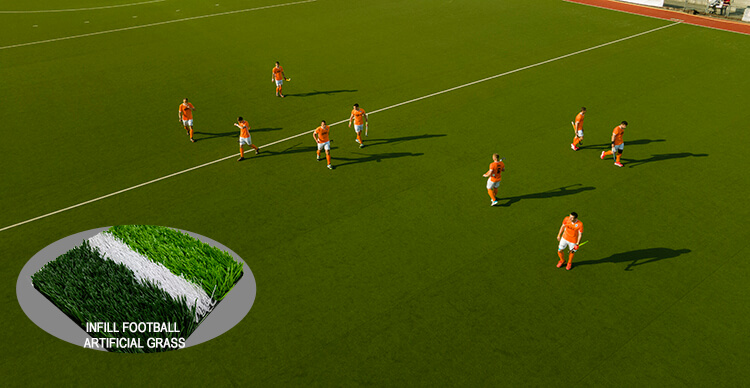

Football Turf Standards for Five-a-Side Pitches Under the New National Standard

Football turf used for five-a-side pitches is manufactured from imported PP resin fibers and polypropylene fibers, offering high elasticity, abrasion resistance, aging resistance, color stability, and efficient drainage. These characteristics make football turf suitable for schools, universities, and sports facilities with high usage frequency.

The playing feel, ball rebound performance, and key indicators of this football turf are comparable to natural grass. All pitch markings and white lines are formed during installation using white resin fibers, ensuring non-toxic, odor-free, and environmentally compliant surfaces.

Technical parameters for five-a-side football turf include:

Pile height: 32–40 mm

Stitch density: 10,500–13,000 stitches/m²

Fiber linear density (DTEX): ≥ 6,000

Infill material requirements:

Quartz sand featuring particle sizes between 0.3 and 1.5 mm, with silicon content of 90% or above.

Quartz sand infill volume: 20–30 kg/m²

Rubber granule particle size: 1–3 mm

Rubber granule infill volume: 4–7 kg/m²

Football Turf Infill Requirements for Seven-a-Side Pitches

The football  turf for seven-a-side soccer fields follows a similar technical framework, adapting to higher-intensity matches and larger field dimensions by adjusting pile height and infill quantities.

Standard specifications for seven-a-side football turf include:

Pile height: 40–50 mm

Stitch density: 9,500–12,000 stitches/m²

Fiber linear density (DTEX): ≥ 6,000

Infill standards:

Quartz sand is specified with a particle size range of 0.3–1.5 mm and a silicon content no lower than 90%.

Quartz sand infill volume: 18–28 kg/m²

Rubber granule particle size: 1–3 mm

Rubber granule infill volume: 4.5–7.5 kg/m²

Football Turf Standards for Eleven-a-Side Pitches

The football turf system specifically designed for 11-a-side soccer fields is not only widely used in soccer stadiums but also covers various multi-purpose sports venues, including athletic tracks, tennis courts, baseball fields, hockey fields, golf courses, and school sports complexes.

Technical requirements for eleven-a-side football turf are as follows:

Pile height: 40–50 mm

Stitch density: 9,500–12,000 stitches/m²

Fiber linear density (DTEX): ≥ 6,000

Infill material specifications:

Quartz sand featuring particle sizes between 0.3 and 1.5 mm, with silicon content of 90% or above.

Quartz sand infill volume: 18–28 kg/m²

Rubber granule particle size: 1–3 mm

Rubber granule infill volume: 4.5–7.5 kg/m²

Football Turf Selection and Installation Considerations

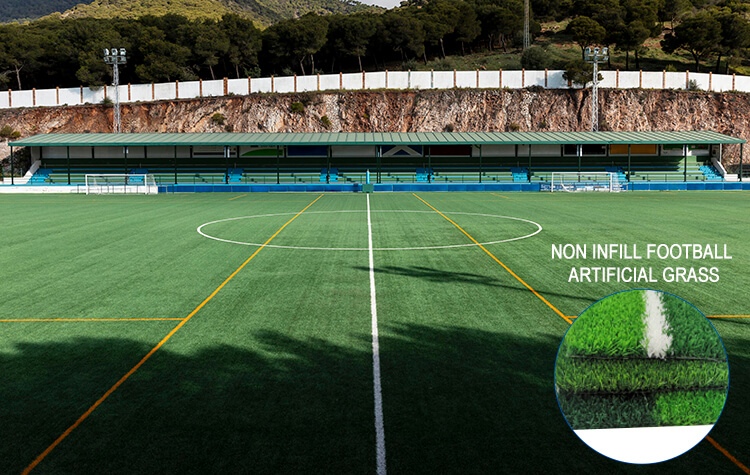

Football turf selection should be based on usage scenarios, budget constraints, and certification requirements. FIFA-certified PE infill football turf is recommended for professional competitions, while non-infill systems may be suitable for schools and community facilities to reduce maintenance demands.

During installation, football turf construction must comply with base preparation standards, including drainage slope requirements of 0.3%–0.5%. Routine maintenance is also essential to preserve surface performance and extend service life.

Industry Context and Outlook

Football turf continues to play an important role in modern sports infrastructure due to its durability, adaptability to diverse climates, and consistent playing performance. As standards and materials evolve, regulated football turf systems remain a foundational component in the development of safe, compliant, and sustainable football facilities.
