Author: Site Editor Publish Time: 2026-02-24 Origin: Site
Rooftop Football Field Construction Complete Guide: Special Design for Load-Bearing, Drainage, and Turf Systems
In 2018, Europe's first standard-size rooftop football field was completed on a warehouse roof in Amsterdam; in 2022, a professional football field accommodating 500 spectators was built on a shopping mall roof in Tokyo's Shibuya district; by 2024, Dubai will complete the world's highest rooftop football field at 250 meters above ground. This revolution to reclaim green space from the sky is quietly unfolding in major cities worldwide.
Rooftop football fields not only solve urban land scarcity but also create entirely new possibilities for sports spaces. However, moving football fields weighing hundreds of tons to rooftops presents unique challenges including load-bearing limitations, drainage safety, and wind resistance. This article provides a comprehensive analysis of specialized construction technologies for rooftop football fields, with particular focus on the specialized design of artificial grass football field systems.
Permanent Loads (Static Loads):
- Artificial grass football field system: 35-65 kg/m²
- Foundation structure: 25-40 kg/m²
- Drainage system: 15-25 kg/m²
- Fencing facilities: 10-20 kg/m²
Total: 85-150 kg/m²
Live Loads (Dynamic Loads):
- Athlete concentrated load: 500 kg/m² (localized)
- Spectator areas: 400 kg/m²
- Equipment load: 150 kg/m²
Design Standard: ≥350 kg/m²
Environmental Loads:
- Wind load: Calculated based on height and regional coefficients
- Snow load: Additional consideration for northern regions
- Seismic load: Special design for earthquake zones
Disadvantages of Traditional Concrete Foundations:
- Excessive weight (200-300 kg/m²)
- Complex construction
- Thermal expansion and contraction issues
New Lightweight Foundation Solutions for Artificial Grass Football Field:
Option A: Honeycomb Aluminum Plate System
Technical Parameters:
- Density: 60-80 kg/m³ (1/27 of steel)
- Compressive Strength: 3-8 MPa
- Thickness: 25-40 mm
- Weight: 15-25 kg/m² (only 1/10 of concrete)
Option B: Composite Material Grating System
Material Composition:
- Glass Fiber Reinforced Plastic (FRP)
- Carbon Fiber Reinforced Composites
- High-Density Polyethylene (HDPE)
Advantage Characteristics:
- Weight: 12-20 kg/m²
- Corrosion Resistance: Over 30-year service life
- Modularity: Quick installation and removal
- Water Permeability: 100% permeability rate
Option C: Pneumatic Cushion System
Functional Features:
- Adjustable Stiffness: Adjust based on sport type
- Impact Absorption: 40% improvement over traditional systems
- Weight: 8-15 kg/m²
Challenge One: Drainage Height Limitations
- Traditional slope drainage requires 30-50 cm height
- Limited rooftop space
- Solution: Vertical layered drainage
Challenge Two: Waterproof Layer Protection for Artificial Grass Football Field
- Artificial grass football field system must not damage existing waterproofing
- Requires secondary waterproof protection
- Solution: Separated drainage design
Challenge Three: Heavy Rain Peak Management
- Rapid rainwater accumulation on rooftops
- Insufficient traditional drainage capacity
- Solution: Siphon-accelerated drainage
Four-Layer Vertical Drainage System:
First Layer: Rapid Infiltration Layer (0-5 cm)
Specially designed artificial grass football field: Vertical drainage channel design
Hydrophobic infill particles: Accelerate water film rupture
Surface micro-slope: 0.5-1% natural drainage
Second Layer: Intermediate Transition Layer (5-15 cm)
High permeability cushion: ≥85% porosity
Anti-clogging filter membrane: 50-100 micron pore size
Drainage guide grid: Directs water flow
Third Layer: Core Drainage Layer (15-25 cm)
Three-dimensional drainage board: 20-25 mm height
Water storage-drainage dual mode
Siphon acceleration device (activates during heavy rain)
Fourth Layer: Safety Isolation Layer
Anti-puncture cushion
Waterproof detection system
Emergency drainage channels
Drainage Performance Indicators for Artificial Grass Football Field:
- Normal rainfall: ≥60 mm/h drainage capacity
- Heavy rain conditions: ≥100 mm/h peak drainage
- Recovery time: No surface water within 30 minutes after heavy rain
- Water recovery rate: 70-85% rainwater collectible for reuse
Real-time Monitoring System:
- Humidity sensors: One per 100 m²
- Flow monitoring: Real-time data per drainage outlet
- Weather forecast integration: Pre-adjust drainage modes
Automatic Control Functions:
Normal Mode:
Gravity natural drainage
Rainwater recovery activation
System self-check operation
Heavy Rain Mode:
Siphon drainage activation
Emergency channel opening
Warning system activation
Maintenance Mode:
Reverse flush cleaning
System performance testing
Automatic fault diagnosis
Wind Speed Variations at Different Heights:
- Ground level (0-10 m): Baseline wind speed
- Low-rise rooftops (10-30 m): 1.2-1.5 times
- Mid-rise rooftops (30-100 m): 1.5-2.0 times
- High-rise rooftops (100 m+): 2.0-3.0 times
Wind-Induced Vibration Effects on Artificial Grass Football Field:
- Vortex-induced vibration: Periodic vibration at specific wind speeds
- Flutter effect: Self-excited structural vibration
- Buffeting response: Random vibration from turbulence

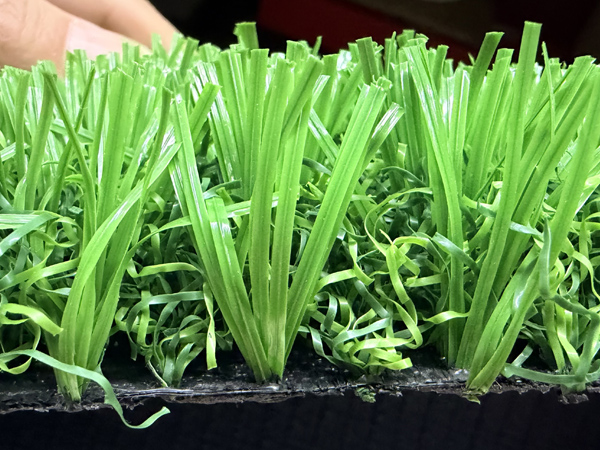

First Layer: Wind-resistant Grass Fiber Design for Artificial Grass Football Field
Wind-resistant grass fiber characteristics:
Low wind resistance cross-section: Improved C/U shape design
Weighted fibers: Added high-density materials
Reinforced weaving: Enhanced turf cluster stability
Flexible connection: Allows slight swaying
Technical parameters:
Wind resistance rating: Withstands Beaufort scale 12 winds
Sway amplitude: <15° (during Beaufort scale 10 winds)
Recovery performance: Automatic upright recovery after wind
Second Layer: Wind-resistant Infill Treatment for Artificial Grass Football Field
Wind-resistant infill formulation:
Weighted particles: Added metal oxides
Binders: Environmentally friendly bonding materials
Layered design: Weighted base, stable surface
Surface treatment: Anti-scattering coating
Example formulation:
Base layer: Rubber granules (2-3 mm) + 30% iron powder
Intermediate layer: Quartz sand + binder
Surface layer: Fine sand + curing agent
Third Layer: Edge Anchoring System for Artificial Grass Football Field
Edge reinforcement solutions:
Mechanical fixation: Stainless steel anchors
Vacuum adsorption: Edge negative pressure fixation
Magnetic anchoring: Electromagnetic fixation system
Flexible connection: Allows thermal expansion
Installation points:
Fixing spacing: 30-50 cm
Depth requirement: Penetrates waterproof layer
Sealing treatment: Dual waterproof sealing
Maintenance access: Easy inspection and repair
Active Control Technology:
Wind sensor network:
Wind speed/direction sensors
Pressure distribution sensors
Vibration monitoring sensors
Data fusion analysis
Intelligent response system:
Warning stage (wind speed >15 m/s):
Activate monitoring
Prepare adjustments
Adjustment stage (wind speed >20 m/s):
Surface tension adjustment
Infill layer reinforcement
Edge fixation enhancement
Protection stage (wind speed >25 m/s):
Emergency reinforcement
Drainage system protection
Safety isolation
Passive Wind Resistance Design for Artificial Grass Football Field:
- Flow guide plates: Change wind flow direction
- Vortex generators: Disrupt regular vortex formation
- Damping devices: Dissipate vibration energy
- Flexible connections: Absorb wind-induced deformation
Physical Property Requirements:
- Weight: ≤8 kg/m² (including infill)
- Thickness: ≤45 mm (total height)
- Weather resistance: -30°C to +70°C
- Fire rating: B1 level or higher
Sports Performance Standards for Artificial Grass Football Field:
- Ball roll consistency: ≤8% variation coefficient
- Impact absorption: 55-70%
- Vertical deformation: 6-10 mm
- Rotational resistance: 25-40 Nm
Five-layer Composite System:
Layer 1: Sports Surface Layer
Mixed grass fibers: C-shape + U-shape + diamond-shape
UV-resistant treatment: ≥85% color retention over 10 years
Wear-resistant coating: Extends lifespan by 30%
Temperature regulation: Phase-change material microcapsules

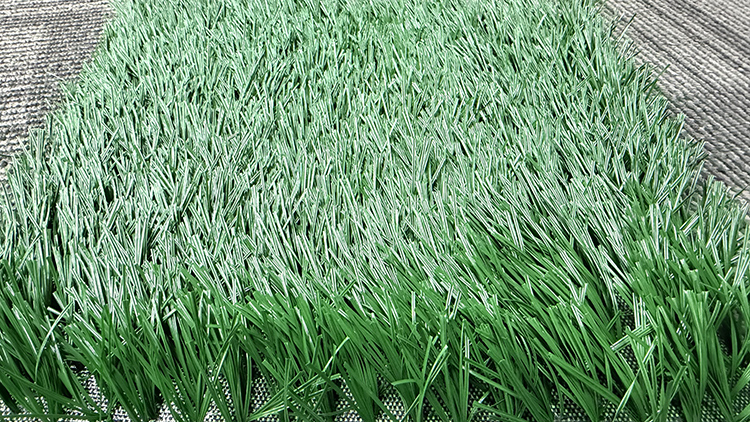

Layer 2: Cushion Infill Layer
Lightweight infill: Foamed rubber granules
Elasticity adjustment: Different hardness zones
Thermal management: Composite heat conduction/insulation
Drainage channels: Vertical flow guidance
Layer 3: Structural Support Layer
Tensile-resistant backing: Bidirectional reinforcement
Tear-resistant coating: Polyurethane enhancement
Dimensional stability: <0.5% thermal shrinkage
Environmental certification: 100% recyclable
Layer 4: Drainage Isolation Layer
Three-dimensional drainage board
Root penetration protection
Sound insulation cushion
Moisture barrier
Layer 5: Rooftop Adaptation Layer
Sliding interface: Allows thermal movement
Vibration isolation: Reduces transmission
Protective mat: Prevents waterproof layer damage
Inspection access: Facilitates maintenance
Real-time Monitoring System:
Load monitoring:
Strain sensors: Monitor structural deformation
Displacement sensors: Detect settlement
Inclination sensors: Monitor overall tilt
Crack monitoring: Early crack warning
Environmental monitoring:
Wind speed/direction: Real-time conditions
Temperature distribution: Thermal stress
Humidity detection: Waterproof layer status
Vibration monitoring: Dynamic response
Warning Threshold Settings for Artificial Grass Football Field:
- Yellow warning: 70% of design load
- Orange warning: 85% of design load
- Red warning: 95% of design load
- Emergency state: Exceeds design load
Four-level Emergency Response:
Level 1: Routine Prevention
Daily inspections: Structure, drainage, fixation
Weather forecasting: 48-hour advance warnings
Regular drills: Quarterly emergency drills
Equipment maintenance: Ensure system integrity
Level 2: Risk Response
Personnel evacuation: Spectators and athletes
System reinforcement: Activate auxiliary fixation
Accelerated drainage: Maximum capacity
Continuous monitoring: Enhanced data collection
Level 3: Emergency Handling
Site clearance: Mandatory evacuation
Professional reinforcement: Engineering intervention
Equipment protection: Important relocation
Traffic control: Surrounding area management
Level 4: Post-disaster Recovery
Safety assessment: Professional inspection
Damage repair: System restoration
Functional testing: Comprehensive testing
Report summary: Improvement measures
Operational Revenue Analysis for Artificial Grass Football Field:
- Field rental: 0.8-1.5 million RMB annually
- Event hosting: 0.5-1 million RMB annually
- Advertising sponsorship: 0.3-0.6 million RMB annually
- Brand value: Increases building value by 15-25%
Investment Payback Period for Artificial Grass Football Field:
- Optimistic scenario: 4-6 years
- General scenario: 6-8 years
- Conservative scenario: 8-10 years
Ecological Contributions:
- Heat island mitigation: Lowers surrounding temperature 2-4°C
- Stormwater management: Reduces runoff 40-60%
- Air quality: 8-12 tons CO₂ absorption annually
- Noise reduction: Lowers environmental noise 3-5 dB
Resource Conservation with Artificial Grass Football Field:
- Land use: Zero additional land
- Material recycling: ≥95% system recyclability
- Energy savings: 60-70% more efficient than new stadiums
- Water resources: ≥75% rainwater utilization
Smart Material Applications:
- Self-repairing grass fibers: Automatic micro-damage repair
- Color-changing temperature control: Color adjustment by temperature
- Piezoelectric power generation: Converts kinetic energy to electricity
- Optical light guiding: Self-luminous markings at night
Digital Twin System for Artificial Grass Football Field:
Physical Field:
Actual rooftop field
Sensor network
Actuators
Digital Twin:
3D model
Real-time data
Simulation predictions
Intelligent decision-making
Application Scenarios:
Structural health prediction
Maintenance optimization
Emergency plan simulation
Operational efficiency improvement
Vertical Sports Complex:
Underground: Parking + equipment rooms
Ground level: Commercial + entrance
Lower levels: Fitness center + training
Middle levels: Offices + viewing platforms
Upper levels: Professional fields + events
Rooftop: Open-air field + green park
Transportation:
Vertical elevators: Quick access
Escalators: Continuous flow
Viewing stairs: Experiential ascent
Emergency exits: Safe evacuation
Community Function Integration with Artificial Grass Football Field:
- Sports functions: Football, basketball, running
- Social spaces: Viewing areas, rest areas
- Commercial amenities: Dining, retail
- Cultural facilities: Exhibitions, performances
- Ecological functions: Greenery, rain gardens
The emergence of rooftop football fields represents not just technological victory but urban development philosophy revolution. It signifies transition from horizontal expansion to vertical growth, from single functions to composite values, from resource consumption to sustainable development.
Each rooftop artificial grass football field installation achieves precise balance—between load-bearing and lightweight, drainage and waterproofing, wind resistance and elasticity, safety and experience. These seemingly contradictory requirements find harmonious unity through technological innovation.
More importantly, rooftop artificial grass football field reintroduces sports dimension to urban spaces. In concrete jungles, green fields bloom in sky; amidst urban noise, football passion soars at heights. This provides urban residents new sports venues while injecting new vitality and warmth into cities.
Future artificial grass football field installations, with advancing technology and evolving concepts, will become standard urban features. Whether commercial center rooftops or residential building tops may transform into green fields, basketball courts, running tracks. The sky, once neglected dimension, becomes new frontier for urban sports.
When children play football in urban sky, when workers exercise on rooftop artificial grass football field during breaks, when community matches occur under stars—we witness not only physical space changes but urban lifestyle innovations, human-city relationship redefinition.
Rooftop artificial grass football field enables cities growing skyward, sports soaring to heights, life unfolding new possibilities in three-dimensional space. This represents technology victory and, even more, imagination victory.
